Flour Milling Plant 2000kg/Hr Grain Milling Equipment

Name: Flour Milling Plant 2000kgHr Grain Milling Equipment
Brand: CTGRAIN
Price: 1 USD

Brand Name : CTGRAIN

Model Number : FQFD

Certification : CE / ISO

Place of Origin : Zhengzhou, Henan Province

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Sets per Month

Delivery Time : 20 working days

Packaging Details : Nude packing in Full Container Loading or Fumigation wooden case for LCL.

Name : Flour Milling Plant FQFD Purifier Grain Milling Equipment

Other Name : Purifier Used In Flour Mill Plant

Color : White And Green

Type : FQFD 60 x 2 x 3

Application : Improve Grain Flour Quality

Warranty : 12 Months

Contact Now

Flour Milling Plant FQFD Purifier Grain Milling Equipment

Technical Parameter List :

Type	FQFD 60x 2 x 3
Capacity	1200 - 2000 kg / h (fine)
Power	2 x 0.25 kW
Amplitude	8.5 - 9 mm
Frequency	590 Times/min
Aspiration Volume	55 - 90 m³/ min
Shape Size	2700 x 1500 x 1700 mm
Weight	1100 kg

The machine Widely applied in modern flour mills to produce flour with high quality. Successfully used to produce semolina flour in durum flour mills.

This machine adopting a vibration motor transmission structure, to achieve the ideal screening effect through vibration, blowing, and screening. The screening rate and ash reduction rate is more competitive than any other machines.

Features:

1,The plexiglass glass cover

The plexiglass glass cover of the discharging part can keep the negative pressure in the machine,which is much cleaner, and the purifier will have higher working efficiency.

2,The air volume of each part can be adjusted accurately through the plexiglass observation window.

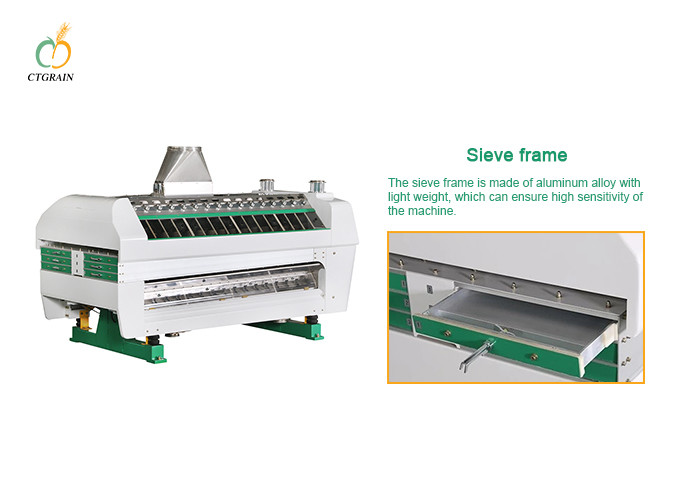

3,Sieve frame:

The sieve frame is made of aluminum alloy with light weight, which can ensure high sensitivity of the machine.

4,Adopting China famous motor brand: JBM or Sanyuan, and imported rubber spring.
