40 TPD wheat flour grinding mill Compact flour mill
Compact flour mill Introduction:

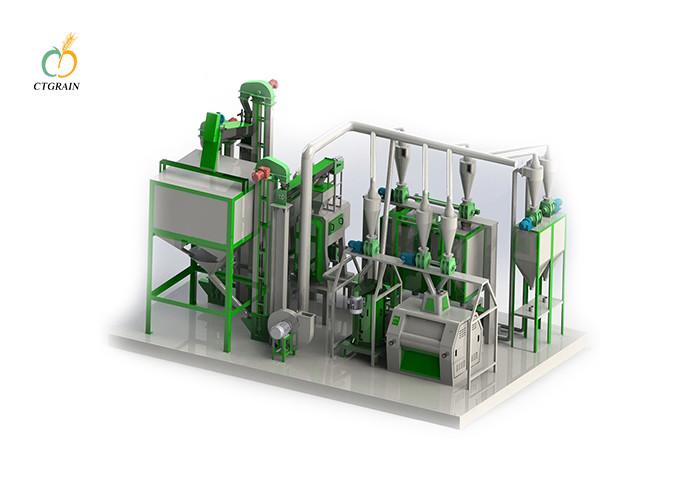

The compact flour mill adopts a steel frame structure for installation. The general structure has three layers. The flour mill is located at the bottom layer, the screen is installed on the first layer, and the shaken and pneumatic conveying pipeline are installed on the second layer.
The compact flour mill adopts closed pipe ventilation and dust removal system, and the material grinded by the mill is transported by air through the pipeline. The height of the whole three-layer structure is relatively low, so it can be installed in the warehouse compactly to reduce investment cost. The whole flour mill can be equipped with PLC control system, which is convenient to realize the centralized control of automation and the operation will be more convenient. The whole flour mill can be customized and designed based on customers' needs, and the milling process can also be adjusted accordingly.
Compact flour mill features:
1. In the cleaning section, there are several aspiration systems that can reduce the dust spray-out from the machine and keep a good working environment.
2. Purifiers are specially designed to get more pure semolina sent to the Reduction which improves the flour quality by a large margin. The rollers for Reduction, Semolina, and Tail systems are smooth rollers that are well blasted.
3. It can weigh and count automatically, and it can accumulate weight. The packing machine has the function of fault self-diagnosis. Its sewing machine has automatic sewing and cutting function.
Compact flour mill parameter:
| Compact flour mill Model | CTWM-40 |
| Capacith(t/24h) | 40 |
| Roller Mill Model | manual |
| Sifter Model | twin sifter |
| Cleaning Flow Sheet | 3-sifting,2-scrouring,2-destoning,1-washing |
| Mill Flow Sheet | 4-breaking,5-reducing,1T |
| Total Power(kw) | 150 |
| Space LxWxH(m) | 30x8x11 |
